USI1004 Ultrasonic Bone Scalpel Specifications

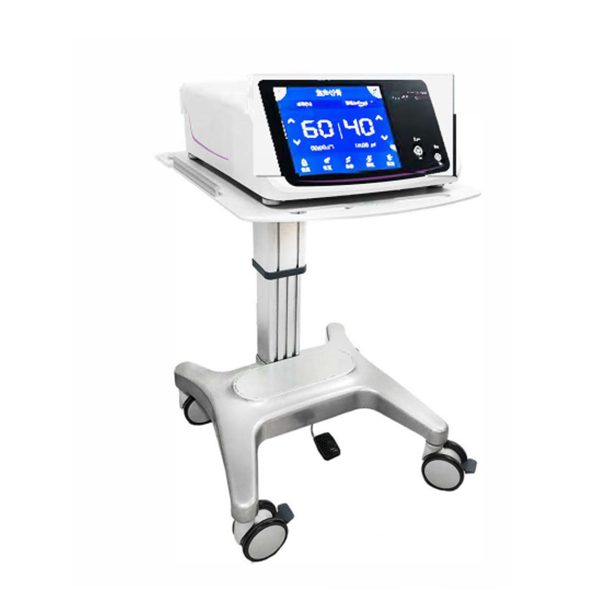

1. Main unit

1.1. Function: used for fine orthopedic surgery. Orthopedics with functions such as cutting, grinding and drilling of bones. 1.2. Frequency: 40kHz. 1.3. Automatic frequency tracking function to ensure the best power output effect in real time. 1.4. Maximum ultrasonic power: 150W. 1.5. According to the needs of surgery, pure ultrasonic output or compound power output can be selected to improve the efficiency of surgery. 1.6. Maximum amplitude: 250µm. 1.7. Power adjustment: 0-100% adjustable, the step distance is 5%, and the appropriate cutting power can be accurately selected according to the object. 1.8. Self-checking system: The host has a fast self-checking function, which can alarm the faulty handle and cutter head, and the self-checking time is less than 3 seconds. 1.9. Cold ultrasound function: It is used for sensitive tissue parts to reduce thermal damage during surgery and better protect surrounding tissue. 1.10, the host has the upgrade function. 1.11. Control panel: The ultrasonic osteotome is displayed in a color LCD window, including parameters such as power, suction volume, irrigation volume, tissue type, etc. The touch screen operation is convenient for medical staff to observe, calculate and adjust intraoperative conditions and equipment usage.

2. Tips

2.1. High-quality titanium alloy material. 2.2. The cutter head is designed with long life and can be reused. 2.3. There are dozens of knife heads in two categories: bone grinding knife and bone cutting knife, which are suitable for different surgical occasions.

3. Handle

3.1. The original imported piezoelectric chip has high energy conversion efficiency. 3.2. Transducer: Electrostrictive technology, energy conversion rate ≥95%. 3.3, suitable for different surgical occasions and parts. 3.4. The material is light, wear-resistant and durable, with stable performance. 3.5. Compound dynamic bone grinding, which can quickly grind 3mm wide grooves without pulling on soft tissue. 3.6. The ultrasonic bone grinding handle has the ability to drill. 3.7. Maximum cutting depth: 22mm.

4. Other

4.1. Flushing and suction pipelines ≥3m. 4.2. Equipped with a filter system to prevent dust pollution and prolong the service life of the machine. 4.3. Equipped with foot pedal, which can directly control perfusion and bone cutting. 4.4. The power cord is 5m long. 4.5. One handle wrench and one tool wrench.

5. Working conditions

5.1. Ambient temperature: 10℃～40℃. 5.2. Relative humidity: 30% to 75%. 5.3. Atmospheric pressure: 700～1060hPa. 5.4. AC power supply voltage: 220±22V. 5.5. AC power supply frequency: 50±1Hz.
