Description

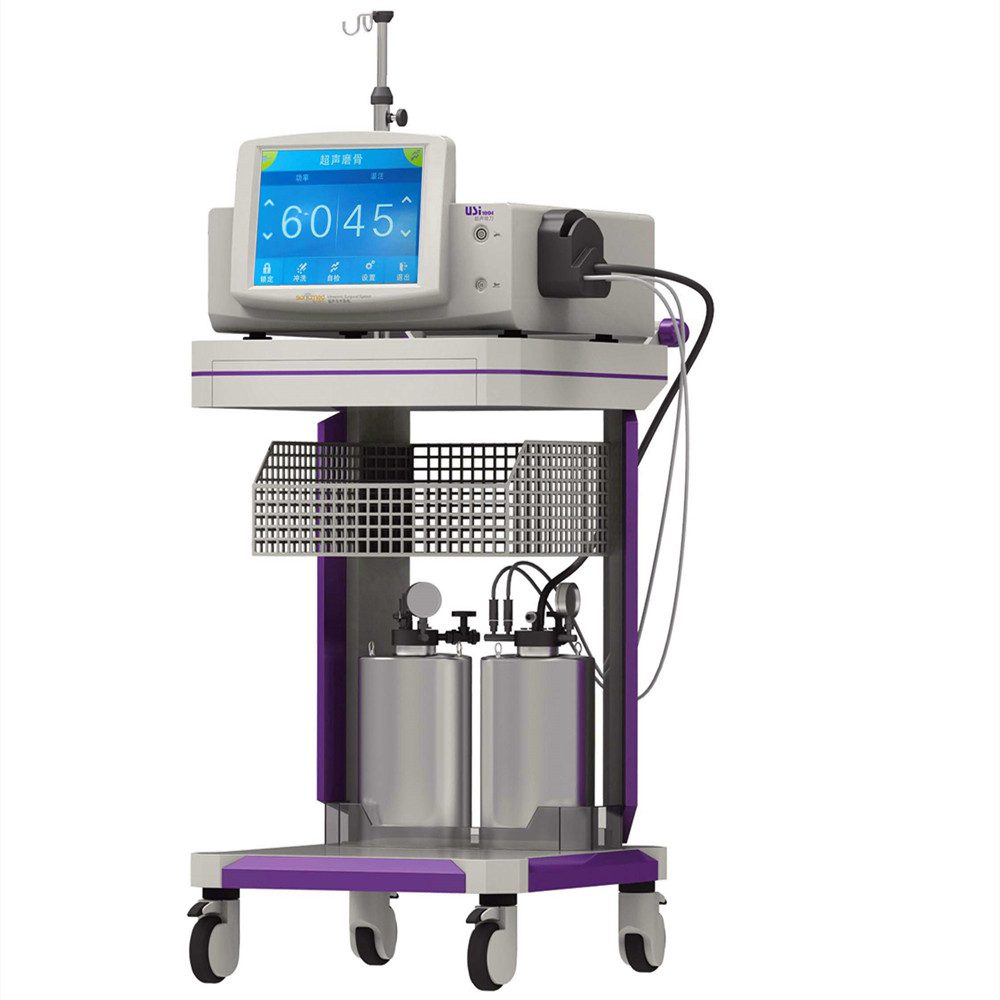

USI1003 Ultrasonic Bone Scalpel
USI series Ultrasonic Bone Scalpel adopts intelligent and modular technologies, which is compatible with ultrasonic bone cutters and drills (patented technology, compound power) for both general surgery and minimally invasive surgery (MIS). The system can match different handpieces according to surgical requirements. Working with a variety of proprietary cutters and drills, the system can easily cut and polish different types of bones. It ensures safe operation on bones, nerves and other important soft tissue junctions, thereby reducing operation time and intraoperative blood loss, and accelerating postoperative recovery.
Ultrasonic Bone Scalpel Cases
Ultrasonic Bone Scalpel Specifications
- Main unit
1.1 Features: can be used for tumor, liver and gallbladder tissue removal.
1.2 Frequency: 40 kHz, automatic frequency tracking, real-time to ensure the best power output.
1.3 Maximum ultrasound electric power: 120W.
1.4 Maximum amplitude: maximum amplitude of 40K ultrasonic aspirator: 220μm.
1.5 Power adjustment: 0-100% adjustable.
1.6 Self-test system: fast self-test function, alarm for the fault of the handle and the tip, self-test time is less than 3 seconds.
1.7 Negative pressure: linear pressure control, 2-78kPa.
1.8 Control panel: power, aspiration, irrigation, organization type and other parameters are displayed in a color LCD, touch screen operation, easy for medical personnel to observe and adjust.
1.9 Good soft tissue protection characteristic, can protect the sensitive vascular nerve and other important soft tissue.
- Tip
2.1 High-quality titanium alloy material.
2.2 High temperature and high pressure and fumigation ，Low temperature plasma sterilization or ethylene oxide method of disinfection.
2.3 Long-life design, reusable.
2.4 Different kinds of aspirator tips, minimal 0.9mm diameter, suitable for a variety of surgical occasions.
- Handpiece
3.1 Original imported piezoelectric chip, high energy conversion efficiency.
3.2 Transducer: electrostrictive technology, energy conversion rate ≥ 95%.
3.3 Straight and curved ultrasonic aspirator handpiece are suitable for different surgical situations.
3.4 Ultrasonic aspirator handpiece is very lightweight.
- Others
4.1 Irrigation and aspiration tube length: > 3m.
4.2 Filtering system, prevent dust pollution, prolong the service life of the machine.
4.3 Footswitch, can control irrigation, bone cutting.
4.4 5m length power line.
- Working condition
5.1 Environment Temperature: 10℃～40℃.
5.2 Relative humidity: 30%～75%.
5.3 Atmosphere pressure: 700 hPa～1060hPa.
5.4 AC supply voltage: 220V±22V.
5.5 AC supply frequency: 50Hz±1Hz.
