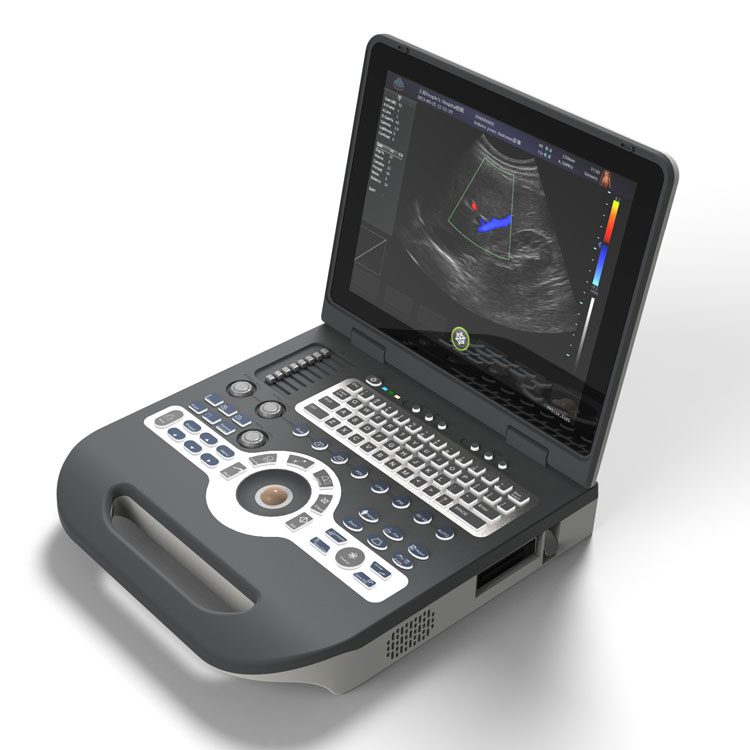

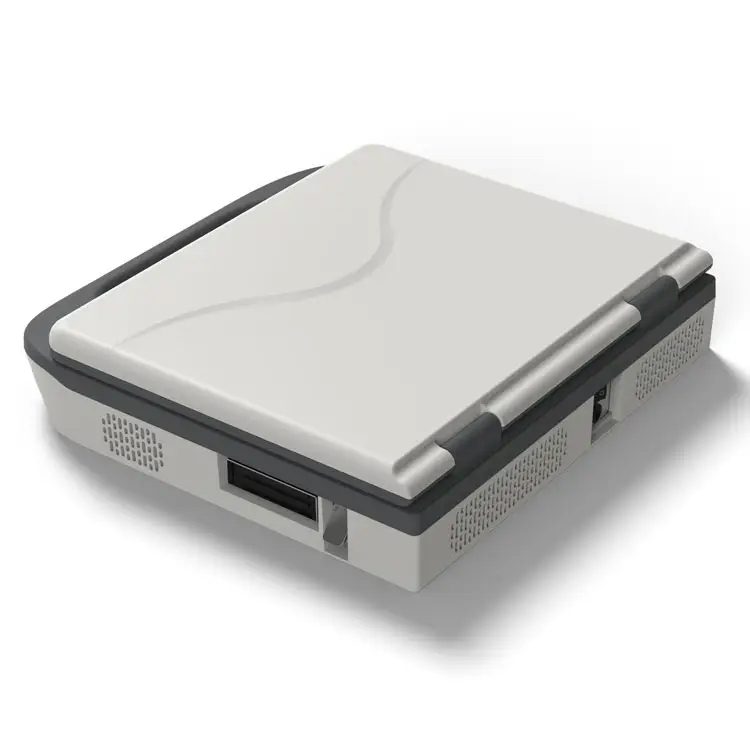

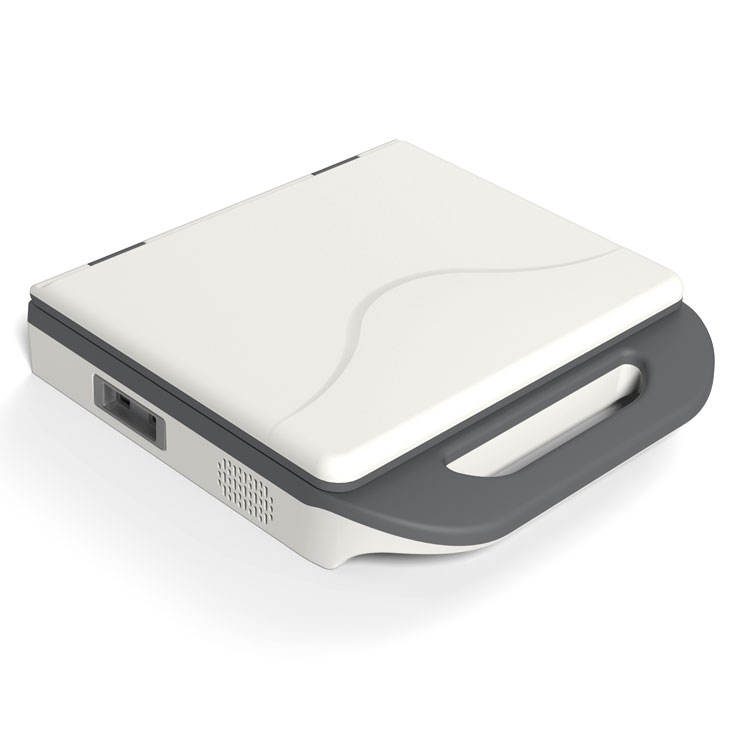

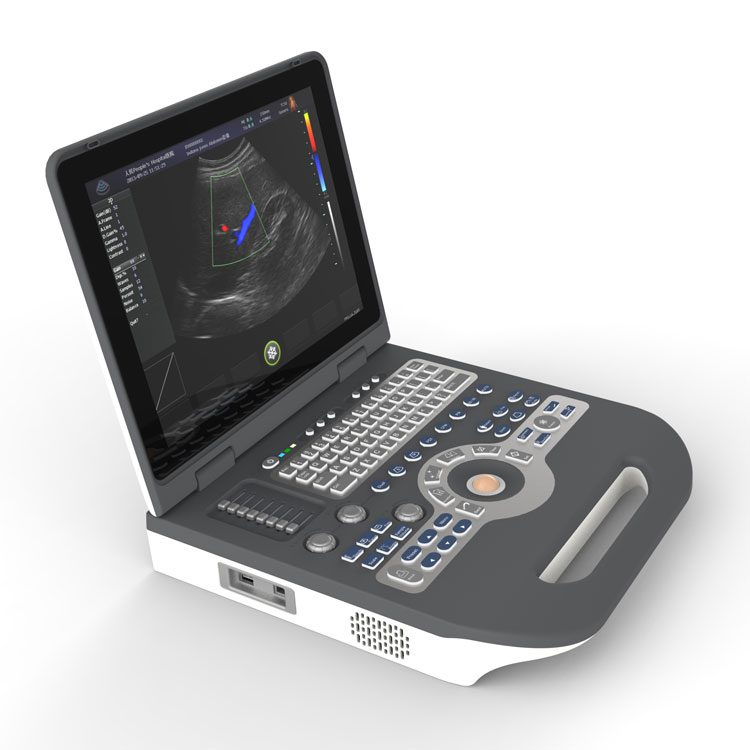

QL3800 Portable Ultrasound Color Doppler Diagnostic Scanner
Features:

  • Size and weight: 470mm(L)* 335mm(W)* 560mm(H)/ 11 KG

  • Power source: 19V,10A DC IN, Support battery power

  • Optional battery:10Ah,14.4V.

  • Battery Operating Time:2 hours Standby time: ≥3.5 Hours

  • Display: 15 inch high brightness and high contrast LCD

  • Range of application: Systemic applications include abdominal, obstetric, gynecological, cardiac, vascular, urinary, small organ, breast, pediatric and neonatal imaging, fetal heart imaging, puncture, etc.

Categories: , Tag:

Description

钦正首页-HOME-4_02
QL3800 Portable Ultrasound Color Doppler Diagnostic Scanner

Specification

Voltage:
100V~240V
Power:
DC19V10A
Frequency:
50 or 60Hz
Equipment size:
369mm(Length)x380mm(Width)x161mm(Height)
Equipment weight:
6.5kg
Operating Temperature:
5℃~40℃
Humidity:
≤80%
Pressure:
700hPa~1060hPa
Storage Temperature:
-5°C~40°C
Transducer Ports:
1
USB Ports:
1
Hard Disc:
120GB(SSD),120G/256GBSSD(Optional)
Foot switch:
USB
External Display:
VGA,HDMI
Cine Memory:
512 frames
Cine Review Speed:
1,2,4,8
Storage Format:
PNG,AVI,BMP,JPEG,DICOM
Export Video Format:
AVI
Export Image Format:
PNG,JPEG,BMP
