LED700/500 Ceiling Mounted Double Heads LED Surgical Light
Features:
  • Long Service: Life-span More than 60,000 hours long service life-span,low failure rate,quality guaranteed,60 times of halogen lamp,avoiding frequent replacement of lamp during service life.

  • ECO-Friendly: System uses only 40% of electricity compared to Halogen lamp.

  • Perfect Cold Light Effect: An imported LED cold light source is adopted as operation lighting. As a genuine cold light source, there is almost no temperature rise at the doctor’s head or the wound.

  • Clearer view for surgery :The white LED has a feature of color temperature which is different from the light source of common shadowless lamps for operation. It may enhance the chromatic aberration between blood, other body tissues and organs, and it thus helps the operating doctor to have a clearer view.

  • New type balance arm suspension system: Six group joints move together and moves smoothly,positions stablely.360 universal design can satisfy various needed height and angle in the operation.

  • Deep Lighting and Perfect Shadow Control :Ideal spatial arrangement design generating a great shadowless effect and deep lighting effect, ingenious escape the doctor's head and arm block.

Description

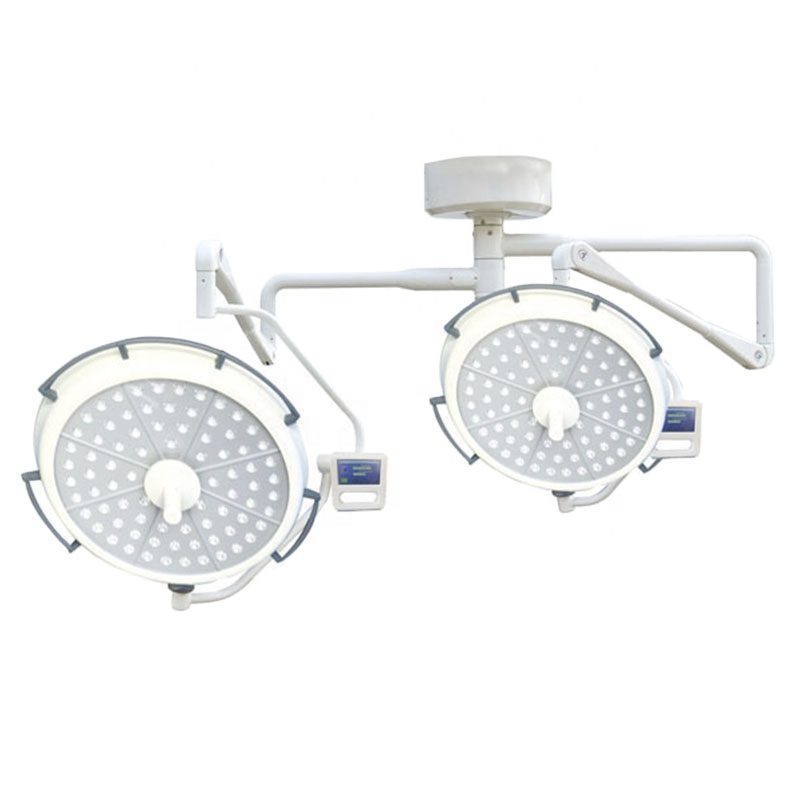

LED700/500 Ceiling Mounted Double Heads LED Surgical Light

YC series LED surgical light deliver cool, bright white light so the medical staff stays comfortable under the most demanding conditions. The high quality operating light provide natural color rendition and excellent shadow control, and deep-cavity illumination, making it an ideal choice for operating environments.

Technical Parameters:

 YCLED700YCLED500
Diameter Of Lamp Cap700mm500mm
Illumination Intensity180,000 Lux160,000 Lux
Color Temperature4300±500 K4300±500 K
Light Spot Diameter100-300 mm100-300 mm
Depth of Focus≥1200 mm≥1200 mm
Brightness Adjustment (Stepless)1-1001-100
Color rendering index≥97Ra≥97Ra
Temperature increase at operation area<2℃<2℃
Temperature increase over surgeon’s head<1℃<1℃
Radius of operation≥2200mm≥2200mm
Radius of working600-1800mm600-1800mm
Power SupplyAC100-240V 50/60HzAC100-240V 50/60Hz
Input Power400VA400VA
LED Services Life≥60,000 hours≥60,000 hours
Lamp Power1W/3V1W/3V
Best Install Height2800-3000mm2800-3000mm



Recomend by 5000 Doctor and 20.000 User
