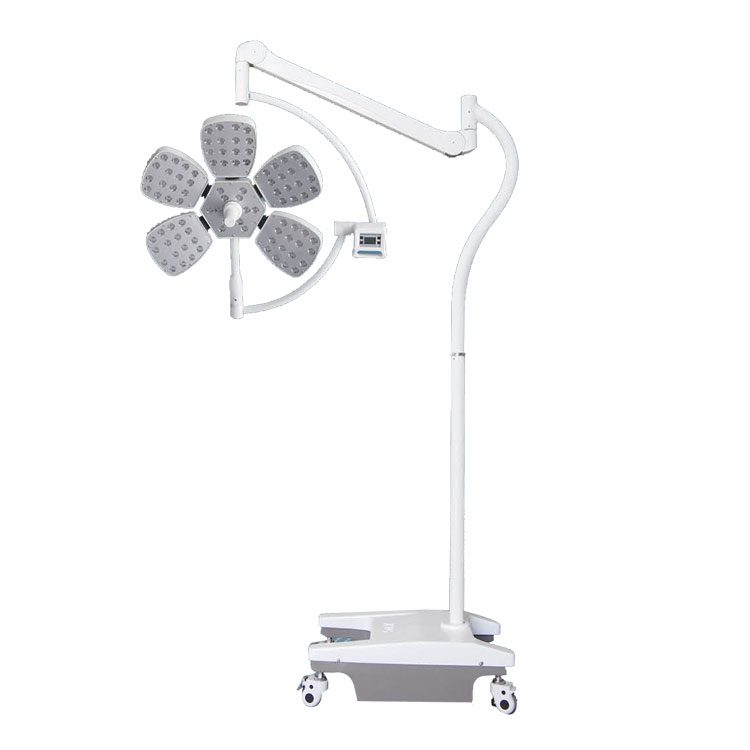

LED5L Mobile Type LED Surgical Light
Features:
  • Long Service: Life-span More than 60,000 hours long service life-span,low failure rate,quality guaranteed,60 times of halogen lamp,avoiding frequent replacement of lamp during service life.

  • ECO-Friendly: System uses only 40% of electricity compared to Halogen lamp.

  • Perfect Cold Light Effect: An imported LED cold light source is adopted as operation lighting. As a genuine cold light source, there is almost no temperature rise at the doctor’s head or the wound.

  • Clearer view for surgery :The white LED has a feature of color temperature which is different from the light source of common shadowless lamps for operation. It may enhance the chromatic aberration between blood, other body tissues and organs, and it thus helps the operating doctor to have a clearer view.

  • New type balance arm suspension system: Six group joints move together and moves smoothly,positions stablely.360 universal design can satisfy various needed height and angle in the operation.

  • Deep Lighting and Perfect Shadow Control :Ideal spatial arrangement design generating a great shadowless effect and deep lighting effect, ingenious escape the doctor's head and arm block.

Description

LED5 Ceiling Mounted Single Head LED Surgical Light

YCLED5 is an advanced, cost-efficient LED surgical lighting system. It provides superior performance through the use of LEDs from OSRAM and an advanced optical design. The light patch remains excellent focus pattern and shadowless lighting to eliminate interfering shadows from surgical team’s heads and/or hands during surgical procedures. The low heat dissipation of the LEDs reduces the desiccation of exposed tissue to avoid discomfort to both surgeon and patient during long hours procedures.

Technical Parameters:

 YCLED5L
Illumination Intensity160,000Lux
Color Temperature4300±500 K
Light Spot Diameter100-300 mm
Depth of Focus≥1200 mm
Brightness Adjustment (Stepless)1-100
Color rendering index≥97Ra
Temperature increase at operation area<2℃
Temperature increase over surgeon’s head<1℃
Radius of operation≥2200mm
Radius of working600-1800mm
Power SupplyAC100-240V 50/60Hz
Input Power400VA
LED Services Life≥60,000 hours
Lamp Power1W/3V
Best Install Height2800-3000mm

Recomend by 5000 Doctor and 20.000 User
