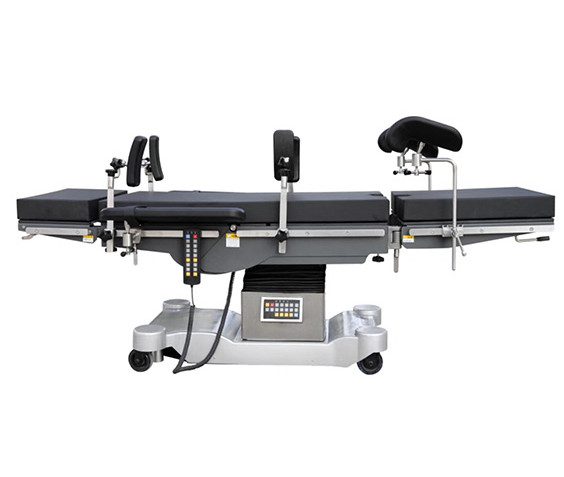

D3 II Electric Hydraulic Operating Table
Features:
  • Universal table - very flexible, sturdy, mobile and extremely easy to adjust

  • Eccentric column position plus detachable leg and head sections with the possibility to reverse the orientation of leg and head sections make the use of C-arm possible on any part of patient’s body during all types of surgical operations

  • Fully stainless steel construction including table top frames, accessories rail, base cover and column telescopic covers

  • Integrated weight compensation by rigid locking gas springs facilitates manual adjustment of the head and leg sections

  • Split leg sections which can be adjusted independently both in up-down and 90 degrees to the side increase versatility.

  • Table top is x-ray translucent without any metallic parts in the middle of the table top, making radiography possible over the entire length patient’s body

Description

D3 II Electric Hydraulic Operating Table

YC-D3 II is the result of systematic improvements to offer the best support for the patient and surgical team. It offers unique X-ray and C-Arm capabilities and extreme articulations for perfect and ergonomic access.
YC-D3 II series is a universal operating table which is flexible, sturdy, mobile and extremely easy to adjust with high quality electro hydraulic drives. It allows for every basic and specialist surgical activities and is widely accepted by surgeons and medical technicians.

Specifications:
Table Length2100±50mm
Table Width500mm
Table Height Range(700-950) ±50mm
Trendelenburg/Reverse≥35°
Lateral Tilt (left/right)≥25°
Head Section≥90°
Back Sectionup ≥82°,down ≥42°
Leg Section Lower≥70°
Leg Section Opened≥90°
Kidney Bridge Elevation≥120mm
Translation Motion400mm
Input Power500VA
Power SupplyAC100-240V 50/60Hz

Recomend by 5000 Doctor and 20.000 User
