D3 Electric Hydraulic Operating Table
Features:

  • High quality hydraulic system can easily realize required positioning like tilting and lifting

  • Four stand base for great stability and high mobility

  • Detachable leg section for orthopedic extension or gynecology/urology application

  • Patient load up to 200kg during positioning movement

  • Memory foam pad covered with antibacterial surface

  • Durable SUS304 grade stainless steel material.

Categories: , Tag:

Description

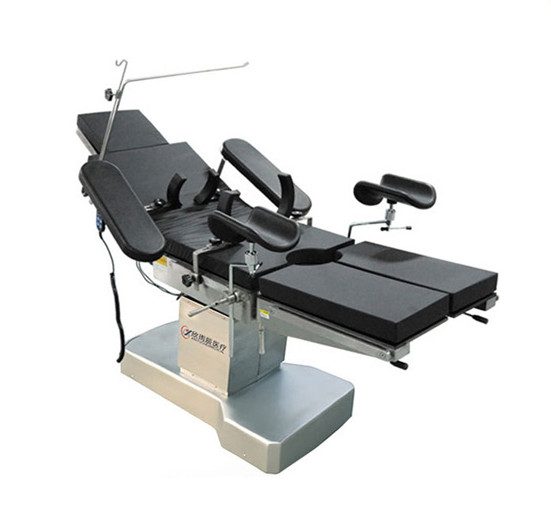

D3 Electric Hydraulic Operating Table

YC-D3 I is a mobile, electro-hydraulic operating table designed to support virtually all general and bariatric surgical procedures including cardiac and vascular, endoscopic, gynecology, urology, nephrectomy, neurology, ophthalmologic and orthopedic with the addition of YC table accessories.
Designed to quickly and easily adapt to virtually every surgical specialty, the YC-D3 Operating Table offers a higher weight limit, exceptionally low height and high flexibility.
Besides AC power supply, optional battery is also available for backup use up to 50 batches of procedures if AC is unexpectedly lost, which doubly boosts the surgical safety during operation

20180816105123_89521
Specifications:
Table Length2100±50mm
Table Width500mm
Table Height Range(700-950) ±50mm
Trendelenburg/Reverse≥35°
Lateral Tilt (left/right)≥25°
Head Section≥90°
Back Sectionup ≥82°,down ≥42°
Leg Section Lower≥70°
Leg Section Opened≥90°
Kidney Bridge Elevation≥120mm
Translation Motion400mm
Input Power500VA
Power SupplyAC100-240V 50/60Hz
